Why Is Ink Bleeding or Spreading on Printable Canvas?

A printable canvas roll can look normal before printing, yet fine lines lose definition, small text becomes soft, colors merge, and dark areas appear wet or muddy once ink is applied. The first reaction is often: “The coating is bad.” Sometimes that is correct. Sometimes it is not.

Ink spreading is produced by an interaction between the canvas surface, ink chemistry, deposited ink volume, media preset, printer condition, and print-room environment. A useful investigation identifies which part of that system changed before anyone adjusts settings at random or rejects a complete shipment.

If you are still selecting the general media category, start with Gowin’s printable canvas rolls. The troubleshooting process below is for a canvas that has already reached the printer but is not producing the expected sharpness.

What Does Ink Bleeding or Ink Spreading Look Like on Canvas?

Bleeding or spreading normally appears as a loss of control at printed edges. Inspect small text, thin lines, color boundaries, and high-density areas rather than judging only from normal viewing distance.

• Fuzzy text edges: letters appear thicker or less defined than the source file.
• Loss of fine detail: narrow lines join together or small gaps close.
• Color migration: one color enters an adjacent color or an unprinted area.
• Expanded dark areas: black or composite shadows extend beyond their intended boundaries.
• Pooling or coalescence: heavy ink gathers into uneven patches instead of forming a uniform printed area.
• Uneven sharpness: one side or one section of the roll appears sharper than another.

The terms overlap but do not always describe the same event. Bleeding is ink moving across a boundary. Feathering is fine, irregular lateral movement that makes an edge look fibrous. Spreading broadly describes lost edge definition, while pooling is excess liquid gathering on the surface. The pattern is a clue, not a diagnosis.

The Most Common Causes at a Glance

More than one cause can be present. A high ink limit, for example, may work in a slow print mode but produce coalescence when passes are reduced. Change one major variable at a time.

Cause 1: Too Much Ink Is Being Deposited

Every printable coating has a practical ink-handling limit under a defined set of conditions. The limit is not determined by the canvas alone. Printer model, ink set, number of passes, resolution, drying or curing, and print-room conditions all influence how much ink can be placed before visible artifacts develop.

Excessive deposition can spread fine edges, merge color blocks, muddy dark areas, and delay drying. A controlled reduction in channel or total ink can show whether over-inking contributes to the problem.

Cause 2: The Media Preset or Printer Configuration Is Wrong

A media preset is more than a substrate name. It can influence ink load, passes or print mode, drying or curing, and media-handling settings. A preset created for vinyl, paper, textile, or a different canvas can therefore be unsuitable.

Start from the closest approved preset for the actual canvas and ink system, then print a test pattern. Follow the printer manufacturer’s custom-media workflow and do not copy settings from another machine as universal values.

If blur follows one line direction or produces consistent color fringes, run the relevant alignment and media-advance checks. Dot-placement error can resemble wet ink movement.

Cause 3: The Canvas Coating Is Not Compatible With the Ink System

Printable canvas is coated printing media. The fabric provides structure and texture, while the coating controls how ink is received, dried, or bonded. Base material, weave, and GSM do not prove ink compatibility.

An aqueous pigment or dye ink needs a receptive surface that controls liquid absorption and dot shape. Eco-solvent ink depends on a surface formulated for solvent interaction and drying. Latex printing adds media presets, optimizer, heat, and curing behavior. UV ink cures on the surface, so adhesion and flexibility can become as important as absorption.

For that reason, first confirm whether the product is specified as water-based canvas, eco-solvent canvas, or UV and latex compatible canvas. Modern coatings and UV technology have broadened compatibility, but a general compatibility label still does not guarantee identical results on every printer, ink, print mode, or finishing process.

Cause 4: You May Be Printing on the Wrong Side

Some canvas rolls have a designated coated print face. If the reverse or untreated side is printed, the difference can be immediate: weak color, uncontrolled absorption, feathered detail, slow drying, or poor adhesion. Other canvas constructions may be printable on both sides, so do not assume that every product is single-sided.

Before changing a profile, confirm the supplier’s print-side identification, roll orientation, and instructions. Mark the approved side when a roll is opened or rewound.

Cause 5: Coating Inconsistency Across the Roll

Media investigation becomes more reasonable when the printer and settings remain unchanged but the result varies systematically across the canvas. One edge may print sharply while the other spreads, or the beginning of the roll may behave differently from a later section.

A cross-roll test can reveal whether the pattern follows the media position. Possible causes include coating variation, contamination, surface damage, or changes caused by storage and handling. The roll’s history matters, so review the guidance on storing printable canvas rolls before treating every local difference as a manufacturing defect.

Consistent variation is evidence for deeper investigation, not proof of a specific defect. Record where each test was taken and retain the printed samples, roll label, and batch information.

How Can You Tell Whether the Problem Is the Canvas or the Printer?

Use this sequence before changing several settings at once:

1. Confirm the canvas model, intended ink system, and correct printable side where applicable.
2. Check that the loaded roll matches the selected media type, preset, and print mode.
3. Run printer maintenance, alignment, and media-advance checks relevant to the visible defect.
4. Print a controlled pattern containing small text, fine lines, color boundaries, gradients, and high-density blocks.
5. Make one moderate ink, pass, drying, or curing adjustment according to the printer manufacturer’s guidance.
6. Compare samples from different positions across and along the same roll.
7. Compare another roll or batch and an approved reference canvas when available.
8. Record the result before changing the next major variable.

Changing several variables together may hide the defect without revealing its cause, making repeat production harder to control.

A Simple A/B Test Can Reveal a Lot

After the initial checks, print the same test on Canvas A, the approved reference, and Canvas B, the suspected media, without changing the test conditions.

If Canvas A performs normally and Canvas B repeatedly spreads, investigation of Canvas B’s coating, condition, or compatibility becomes more justified. This comparison does not identify the exact manufacturing cause by itself.

Why ICC Profiles Cannot Fix Every Canvas Problem

An ICC profile describes color behavior for a defined printer, ink, print mode, media, and calibration state. It helps a color-management system map requested colors into combinations the printing condition can reproduce.

Physical ink control normally has to be established before final profiling. Linearization, channel restrictions, total ink limit, media preset, and print mode create the stable printing condition from which the ICC characterization is built. Using the wrong profile can cause inaccurate color, but a new profile cannot repair severe uncontrolled spreading, unsuitable coating, surface contamination, or poor adhesion.

Reducing the ink limit far enough may hide a wetting problem, yet leave the print with inadequate gamut or black density. A commercially acceptable solution must correct both the physical print behavior and the required color result.

Ink Bleeding vs Poor Ink Adhesion: They Are Not the Same Problem

Bleeding or spreading happens when ink moves beyond its intended boundary or loses edge definition. Poor adhesion means the printed layer does not bond adequately to the surface and may scratch, rub, peel, or separate after printing.

A print can be sharp but fail a handling test. It can also show fuzzy edges yet remain difficult to remove once dry. The distinction is particularly important for UV printing, where curing and surface bonding need to be evaluated separately from image sharpness.

Ink Bleeding vs Show-Through or Ink Penetration

Some operators use “bleeding” to describe ink visible on the back of the canvas. That is better described as show-through or penetration. It concerns ink or color moving through the coating and fabric thickness, while lateral bleeding concerns movement across the printable surface.

Check both sides of the test print. A dark reverse image, an actual transfer onto the platen or liner, and a fuzzy front edge are different observations and may require different corrections.

Does the Problem Change Between Aqueous, Eco-Solvent, Latex and UV?

This is a troubleshooting comparison, not a universal settings chart. Confirm the exact printer and ink instructions, then test the individual canvas. Surface finish can also change how pooling, gloss variation, and edge definition are perceived; Gowin’s matte vs glossy printable canvas guide explains that separate selection decision.

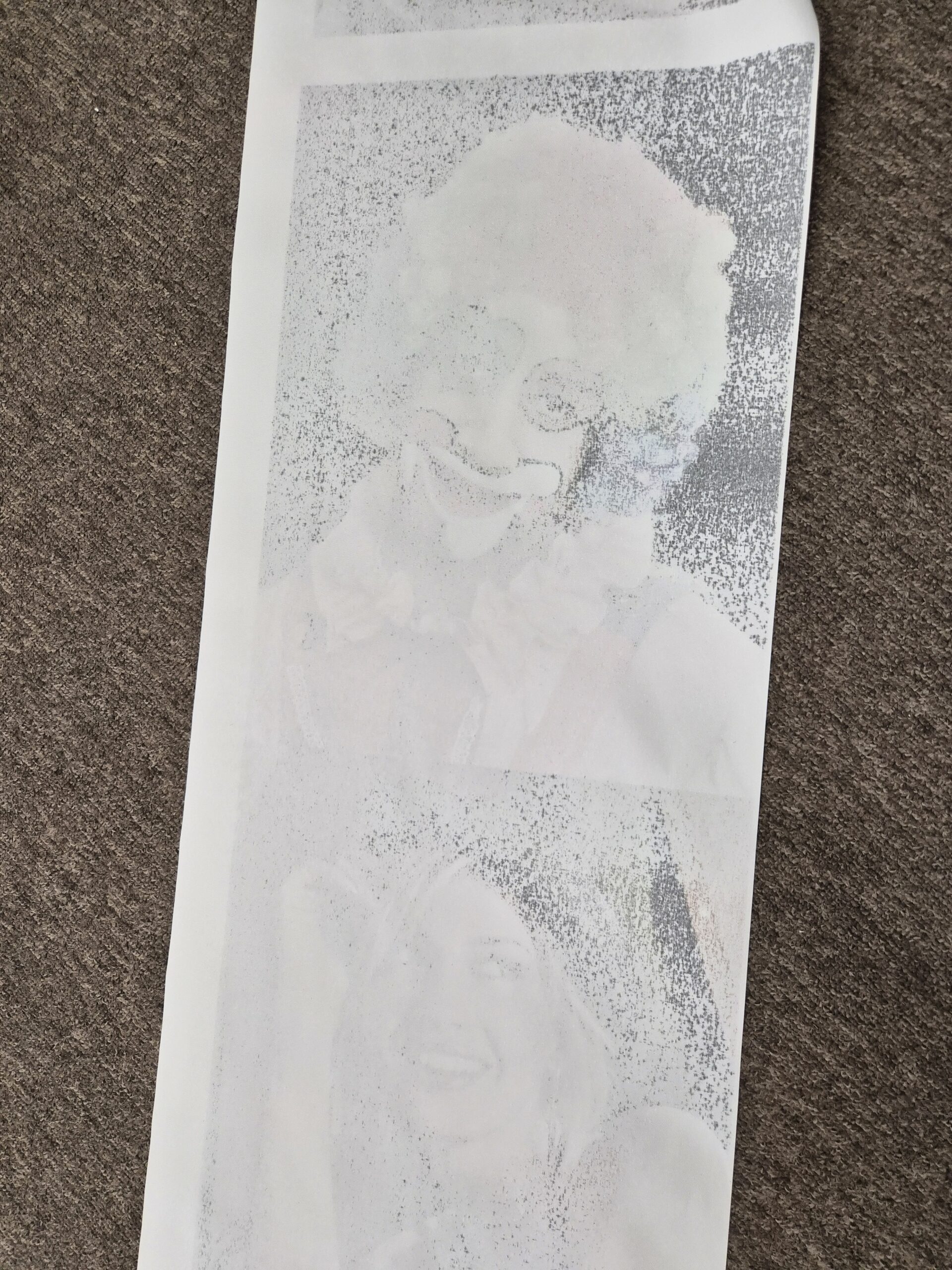

Why Testing Only a Color Image Is Not Enough

A colorful photograph can look attractive while hiding a sharpness problem. Texture, complex detail, and normal viewing distance can disguise small edge errors. A technical approval file should include:

• Small positive and reversed text
• Thin horizontal, vertical, and diagonal lines
• Sharp color-to-color boundaries
• Gradients and neutral gray areas
• High-density composite black
• Saturated single-color and mixed-color blocks

Use the diagnostic pattern first, then confirm the result with representative production images. This makes sample approval more useful than judging one attractive photograph alone.

What Buyers Should Test Before Approving a Printable Canvas

• Color reproduction and black density
• Fine-line, small-text, and color-boundary sharpness
• Drying or curing in a commercially realistic print mode
• Surface appearance and normal handling behavior
• Stretching and corner performance for gallery-wrap production
• Consistency across the roll width and at more than one length position

Material still affects texture, dimensional behavior, stretching, and product position. If the base fabric has not been selected, compare cotton, poly-cotton, and polyester printable canvas separately from the coating investigation.

Why Stretching Should Be Part of the Test for Gallery-Wrap Canvas

A print may look correct while flat but change when tensioned around a wooden frame. After the recommended drying or curing period, stretch the sample using the real frame profile and production method. Inspect the face, edges, and corners for cracking, whitening, gloss change, surface damage, or loss of adhesion.

This test does not diagnose initial bleeding, but it prevents a sharp flat print from being approved when the complete gallery-wrap product will not meet requirements.

What Information Should You Send the Canvas Supplier When Reporting Ink Spreading?

“The canvas prints badly” is not enough for root-cause analysis. Send:

• Canvas model, batch, roll width, and roll label photos
• Printer, ink system, RIP, media preset, and print mode
• Close-up and full-width defect photos plus the diagnostic print
• Whether the issue affects the whole roll, one edge, or selected areas
• Whether approved reference media works normally in the same test
• Storage and opening history when relevant

Also note what changed since the last acceptable run. A new ink lot, maintenance procedure, preset, RIP update, environment, canvas batch, or print mode can narrow the investigation.

When Is a Supplier Investigation Justified?

A deeper media or supplier investigation is reasonable when:

• An approved reference canvas prints normally on the same printer, ink, file, RIP, and settings.
• Multiple rolls from the same batch show the same abnormal pattern.
• The problem follows a repeatable position across the roll width or length.
• Acceptable sharpness requires an unusually large ink reduction that no longer meets color or black-density requirements.
• The output still fails the commercial quality standard after reasonable preset, maintenance, alignment, and environmental checks.

These indicators do not automatically prove supplier fault. They provide a stronger basis for comparing retained samples, reviewing the batch, and deciding whether replacement testing or further production investigation is needed.

How Gowin Approaches Printable Canvas Compatibility and Sample Testing

Gowin manufactures and supplies coated printable canvas rolls for water-based, eco-solvent, UV, and latex applications. Matching begins with the printer, ink system, application, finish, width, and production volume rather than the word “canvas” alone.

Before bulk production, test the selected canvas in the intended printing and finishing workflow. For an ink-spreading report, send the canvas model and batch with the controlled test details above. Samples can be arranged for this evaluation.

For repeat orders, retain the approved print and recorded production conditions as a comparison point when a later result changes.

The Key Point: Diagnose the System, Not Just One Variable

Ink spreading is not automatically a printer problem, and it is not automatically a canvas problem. Reliable diagnosis evaluates the canvas, coating, ink, printer, settings, environment, and production control together.

For commercial production, the correct solution is not merely the setting that makes the visible defect disappear. It must also preserve acceptable color, black density, detail, drying or curing, production efficiency, and repeatability.
