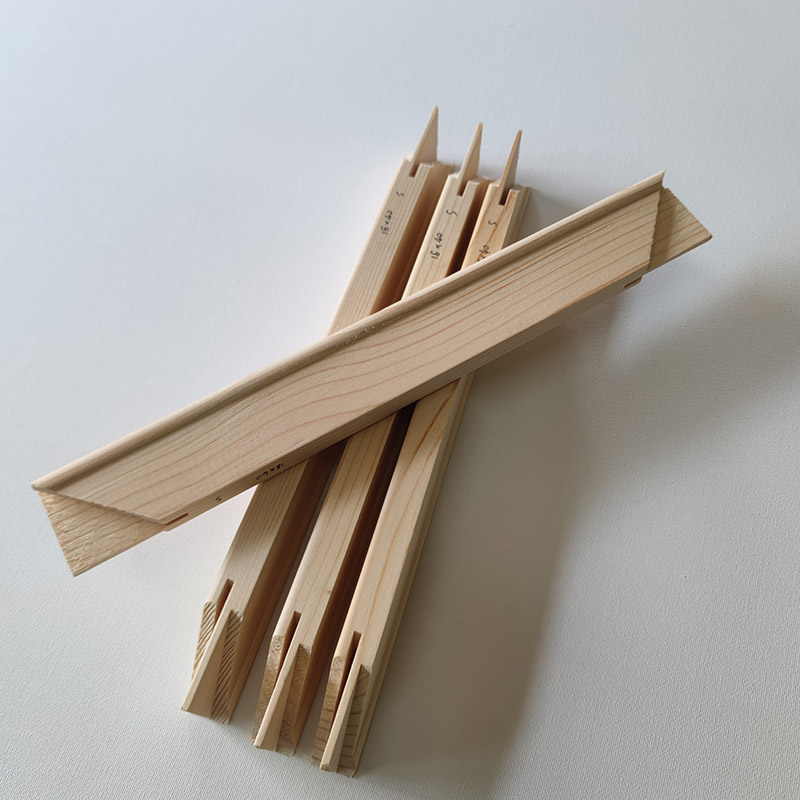

GW2035 – 20 x 35mm Standard Wooden Stretcher Bar
GW2035 is a 20 x 35mm pine wooden Stretcher Bar for standard-profile canvas-frame production. It is an outer frame component used to form the perimeter over which the canvas is stretched, and it belongs to Gowin’s Standard Wooden Stretcher Bars range.
The profile can be supplied in tenoned or non-tenoned structures, with lengths up to 300cm. Before ordering, confirm the finished frame sizes, required bar lengths, canvas specification, assembly method and packing requirements so the complete frame specification can be reviewed together.
Request a GW2035 Sample or Quote
Product Specifications
| Specification | GW2035 |
|---|---|
| Model | GW2035 |
| Product Type | Outer wooden Stretcher Bar |
| Product Family | Standard Wooden Stretcher Bars |
| Profile Size | 20 x 35mm (2.0 x 3.5cm) |
| Material | Pine wood |
| Wood Construction | Finger-jointed where applicable |
| Drying Method | Kiln-dried |
| Corner Structure | Tenoned or non-tenoned options |
| Maximum Length | Up to 300cm |
| Surface | Smooth-sanded wood |
| Standard MOQ | 1,000 pcs per size; a lower quantity may be discussed depending on the complete order |
Product Features
20 x 35mm Standard Profile
GW2035 has a 20mm profile depth and a 35mm width. These dimensions should be considered together with the finished frame size, canvas specification, stretching tension, internal support requirement, frame structure and final application.
Tenoned and Non-Tenoned Options
For standard tenoned bars, the four frame sides are normally assembled by fitting the machined corner joints together, so conventional frame nailing is generally not required for basic assembly. Additional reinforcement may still be used depending on the complete frame structure and application.
Non-tenoned bars can be supplied when you have your own tenoning machinery or intend to use direct-nailing frame assembly. Confirm the required structure before sampling and quotation.
Assembly Fit Confirmation
Corner fit can be confirmed during sampling according to your intended assembly method and frame-production requirements.
Recommended Applications
- Stretched canvas production
- Printed canvas and photo canvas frames
- Decorative wall art
- Standard-profile canvas-frame programs
- Wholesale and private-label canvas-frame production
How to Evaluate the 20 x 35mm Profile
Profile selection should begin with the complete finished product rather than one dimension alone. Review the full frame size range, canvas material, expected stretching method, side-profile presentation, assembly process, internal support plan and packing limits before confirming GW2035.
A 20 x 35mm profile may suit a standard-profile frame program, but it should not be assigned to a fixed canvas weight or maximum finished frame size without evaluating the complete structure. If you are matching an existing frame, provide a profile drawing or physical sample for confirmation.
GW2035 and GW2535 Profile Comparison
GW2035 and GW2535 share the same listed 35mm width. GW2035 has a 20mm profile depth and belongs to the Standard range, while GW2535 has a 25mm profile depth and belongs to the Deep Profile range. The 5mm difference should be reviewed in relation to the complete frame specification rather than treated as a stand-alone performance rating.
| Model | Profile | Product Family | Key Difference |
|---|---|---|---|
| GW2035 | 20 x 35mm | Standard profile | 20mm profile depth with 35mm width |
| GW2535 | 25 x 35mm | Deep Profile | 5mm deeper than GW2035 with the same 35mm width |
Internal Support Guidance
GW2035 forms the outer perimeter of the frame. Internal Supporting Bars are separate components that may be added according to the complete frame structure.
As a general starting point, internal support should normally be considered when the long side reaches approximately 60cm. This is general guidance rather than a fixed engineering rule, and it does not mean that every frame at this size requires a Supporting Bar.
The actual requirement depends on the finished frame dimensions, outer profile, canvas specification, stretching tension, support layout and final application. If you already use a particular support profile or frame drawing, include it for confirmation before production.
Ordering, Lengths and Customization
Lengths and Order Quantities
GW2035 can be supplied in lengths up to 300cm. For quotation, provide the required length list and quantity for each size. The standard MOQ is 1,000 pcs per size, although a lower quantity may be discussed according to the composition and total quantity of the complete order.
Structure and OEM Requirements
Please confirm whether you require tenoned bars for fitted-corner assembly or non-tenoned bars for your own machining or direct-nailing process. Assembly fit, packing and labeling requirements can be confirmed according to the order.
If you require a profile that differs from GW2035, provide a profile drawing or physical sample together with the required lengths and estimated quantities. Feasibility, sampling and MOQ can then be confirmed.
Wood, Production and Quality
GW2035 follows the general pine-wood and production basis used for Gowin’s wooden Stretcher Bars. The wood is kiln-dried before machining, and finger-jointed construction is used where applicable.
During production, we check profile dimensions, straightness, surface sanding, joint fit and packing condition. Regular pine may include slight sound knots. If a cleaner appearance or different wood-grade requirement is needed, confirm it before sampling and quotation.
Packing and Export Supply
OEM and private-label packing are available. Packing and labeling requirements can be confirmed according to the bar lengths, quantities, corner structure and shipping method.
For full-container orders, FOB terms can be discussed; otherwise, supply is normally based on EXW terms. DDP or door-to-door delivery can also be discussed according to the destination and order requirements.
Sample and Profile Confirmation
Samples are available. Before bulk production, confirm the 20 x 35mm profile together with the intended canvas, frame size and assembly method so the complete frame specification can be evaluated.
For sample and quotation preparation, please provide:
- Finished frame sizes
- Required bar lengths and quantities by size
- Canvas specification and stretching method
- Tenoned or non-tenoned structure
- Internal support requirement, if already known
- Packing requirements and destination
Frequently Asked Questions
What are the GW2035 profile dimensions?
GW2035 measures 20 x 35mm, equivalent to 2.0 x 3.5cm.
Is GW2035 an outer Stretcher Bar?
Yes. GW2035 is a Standard outer wooden Stretcher Bar used to form the perimeter of a canvas frame. It is not an internal Supporting Bar.
How does GW2035 differ from GW2535?
GW2035 measures 20 x 35mm and is a Standard profile. GW2535 measures 25 x 35mm and is a Deep Profile. They share the same 35mm width, while GW2535 is 5mm deeper.
Can GW2035 be supplied in tenoned and non-tenoned structures?
Yes. Tenoned and non-tenoned options are available. Confirm the required corner and assembly structure before sampling and quotation.
Request a GW2035 Sample or Quote
Send us your required frame sizes, bar lengths, quantities, canvas specification, assembly preference, internal support requirements, packing requirements and destination. We will help confirm whether GW2035 matches your frame-production requirements and provide the relevant sample and quotation details.
