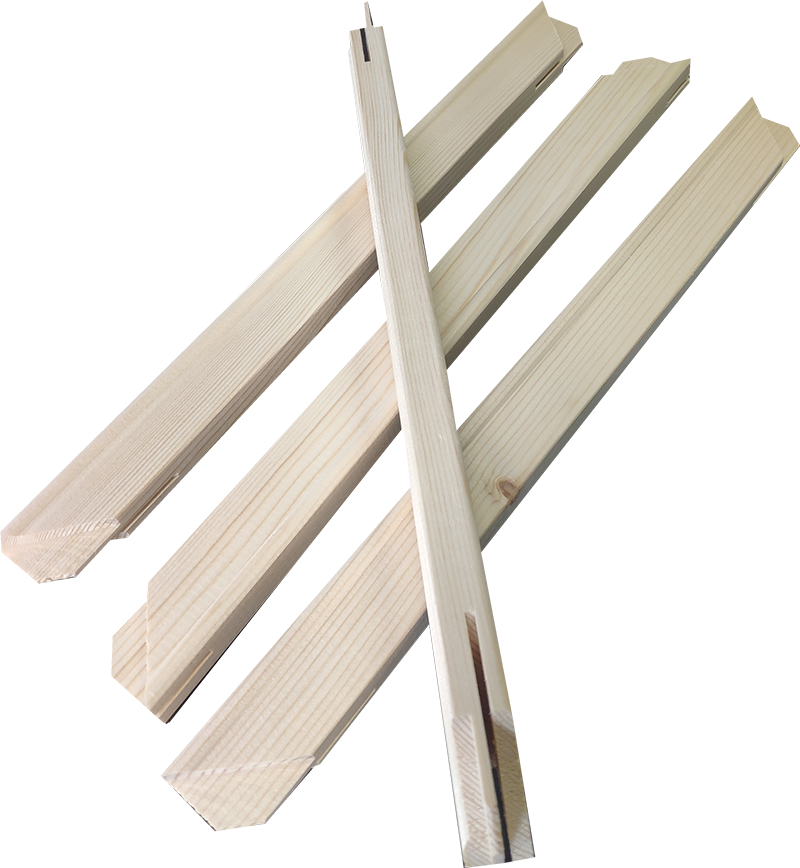

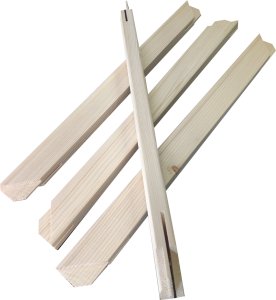

GW2535 is a 25 x 35mm pine wooden stretcher bar in Gowin’s Deep Profile Stretcher Bars range. Compared with the 20 x 35mm GW2035 Standard profile, GW2535 provides an additional 5mm of frame depth, while the 38 x 35mm GW3835G is a deeper option within the same Deep Profile range.
This profile is supplied for stretched canvas, printed canvas frames, decorative wall art and repeat wholesale production. GW2535 is available in tenoned or non-tenoned structures, with listed lengths up to 300cm.
Product Specifications
| Specification | GW2535 |
|---|---|
| Model | GW2535 |
| Product type | Wooden stretcher bar |
| Product family | Deep profile stretcher bars |
| Wood species | Pine wood |
| Wood construction | Finger-jointed |
| Drying method | Kiln-dried |
| Profile thickness | 2.5cm / 25mm |
| Profile width | 3.5cm / 35mm |
| Overall profile dimensions | 25 x 35mm |
| Maximum listed length | Up to 300cm |
| Edge profile | Raised outer canvas-contact lip |
| Corner structure | Tenoned or non-tenoned options |
| Surface | Smooth-sanded wood |
| Standard MOQ | 1,000 pcs per size; a lower quantity may be discussed depending on the whole order |
Profile Features
25 x 35mm Deep Profile
GW2535 measures 25mm deep x 35mm wide. Compared with the GW2035, it has the same 35mm width with an additional 5mm of frame depth. Compared with the GW3835G, it is 13mm shallower with the same listed width. This gives you a clear intermediate profile when greater frame depth is wanted without moving directly to the 38 x 35mm GW3835G deep profile.
Raised Canvas-Contact Lip
The profile includes a raised outer lip that provides clearance between the stretched canvas and the main face of the wooden bar.
Tenoned and Non-Tenoned Options
For tenoned GW2535 bars, the four sides are normally assembled by fitting the machined corner joints together, so conventional frame nailing is generally not required for basic assembly. Additional reinforcement may still be used according to the complete frame design and application.
Non-tenoned structures can be supplied when you have your own tenoning machinery or plan to assemble the frame directly with nails. Pre-assembled frames may also be secured with staples according to the assembly and packing method.
Corner Fit for Different Assembly Methods
Corner fit can be confirmed during sampling. Some production teams prefer a tighter joint for light hammer-assisted assembly, while programs requiring easier assembly by hand may need a different fit.
Recommended Frame Production Uses
- Medium-sized stretched canvas production
- Printed canvas and photo canvas framing
- Decorative wall art using a 25mm frame depth
- Gallery-wrap canvas when a 25 x 35mm internal profile is specified
- Private-label and wholesale canvas-frame programs
Compare Nearby Gowin Stretcher Bar Profiles
| Model | Profile Dimensions | Product Family | Dimensional Difference from GW2535 | Key Difference |
|---|---|---|---|---|
| GW2035 | 20 x 35mm | Standard profile | 5mm shallower with the same width | Standard 20mm-depth profile with a 35mm width |
| GW2535 | 25 x 35mm | Deep profile | Reference profile | 25mm frame depth with a 35mm width |
| GW3835G | 38 x 35mm | Deep profile | 13mm deeper with the same width | 38mm-depth profile with a matching supporting-bar option |
The dimensional comparison provides a practical starting point. Final profile selection should also consider the complete frame dimensions, canvas weight, stretching tension, supporting structure and packing method. The full wooden stretcher bar range includes standard, deep profile, heavy duty and supporting structures.
Ordering, Lengths and Customization
Lengths and Standard Supply
GW2535 can be supplied in cut lengths up to 300cm. Please provide the required bar-length list and quantity for each size when requesting a quotation. The standard MOQ is 1,000 pcs per size, although a lower quantity may be discussed according to the composition and total quantity of the complete order.
Frame Size and Supporting Bars
From approximately a 60cm long side, the need for internal support should be evaluated according to the complete frame dimensions, canvas weight, stretching tension and final application. The suitable supporting-bar profile and layout for GW2535 should be confirmed during sampling rather than selected from the outer-profile dimensions alone. See Gowin’s supporting bars and bespoke profiles for available supply directions.
Bespoke Profile Requirements
If your project requires a different thickness, width, edge profile, corner structure or assembly fit, provide a profile drawing or physical sample together with the required lengths and estimated quantities. Feasibility, sampling and MOQ can then be confirmed.
Wood, Production and Quality Information
GW2535 is made from pine wood. Gowin uses pine because its supply is stable and longer lengths are available for stretcher bar production. Finger-jointed construction allows selected pine sections to be joined for the production of longer bar lengths, while kiln drying helps control moisture before machining.
During production, we check profile dimensions, straightness, surface sanding, joint fit, moisture control and packing condition. Regular pine supply may include slight sound knots. If a cleaner appearance or stricter wood grade is required, please specify this before sampling and quotation, as it may affect material selection and pricing.
Packing and Export Supply
OEM and private-label packing are available. Packing and labeling requirements can be confirmed according to the ordered lengths, corner structure, quantities and shipping method.
FOB and EXW terms are available according to the order volume and shipment arrangement. DDP or door-to-door delivery can also be discussed according to the destination and order requirements.
Sample and Profile Confirmation
Samples are available to confirm the 25 x 35mm profile, raised lip, surface, corner fit and assembly method before bulk production. Please provide:
- Required frame sizes and bar lengths
- Canvas type and expected stretching method
- Tenoned, non-tenoned or pre-assembled structure
- Preferred corner fit and assembly method
- Estimated quantity, packing requirements and destination
Frequently Asked Questions
What are the GW2535 profile dimensions?
GW2535 measures 25mm deep x 35mm wide, equivalent to 2.5 x 3.5cm.
How does GW2535 compare with GW2035 and GW3835G?
GW2535 is 5mm deeper than the 20 x 35mm GW2035 and 13mm shallower than the 38 x 35mm GW3835G. All three profiles have the same listed 35mm width, making frame depth the clearest dimensional difference among them.
What lengths can be supplied?
GW2535 can be supplied in lengths up to 300cm. Confirm the required cut-length list and quantity for each size before quotation.
Can GW2535 be assembled without nails?
The tenoned version is normally assembled by fitting the machined corner joints together, so conventional frame nailing is generally not required for basic assembly. Non-tenoned bars are also available for your own tenoning or direct-nailing process.
When should a supporting bar be considered?
Begin evaluating internal support when the long side reaches approximately 60cm. The final decision depends on the complete frame size, canvas weight, stretching tension and application.
What is the MOQ for GW2535?
The standard MOQ is 1,000 pcs per size. A lower quantity may be discussed depending on the composition and total quantity of the complete order.
Request a GW2535 Sample or Quote
Send us your required frame sizes, bar lengths, corner structure, assembly preference, order quantity, packing requirements and destination. We will help confirm whether GW2535 or another Gowin stretcher bar profile better matches your production requirements and provide the relevant sample and quotation details.
