GW3835G is a 38 x 35mm Deep Profile outer Stretcher Bar that can be configured with different internal Supporting Bar profiles. GWD1635-G is a 16 x 35mm pine wooden Supporting Bar listed for the GW3835G frame system. It is installed inside the frame when additional internal support is required; it is not an outer Stretcher Bar and is not automatically required for every GW3835G frame.
GWD1635-G is one of two confirmed Supporting Bar options for GW3835G. The other is GWD3828-G, with a 38 x 28mm profile. These profiles have different cross-sectional dimensions, so the appropriate option should be confirmed from the complete frame dimensions, required support layout and frame structure. Review the GW3835G Deep Profile Stretcher Bar together with the internal support before confirming your frame specification.
Request a GW3835G Frame Sample or Quote
Product Specifications
| Specification | GWD1635-G |
|---|---|
| Model | GWD1635-G |
| Product Type | Internal Supporting Bar |
| Product Family | Supporting Bars & Bespoke Stretcher Bar Profiles |
| Profile Size | 16 x 35mm (1.6 x 3.5cm) |
| Application | Supporting Bar option for the GW3835G frame system |
| Matching Outer Stretcher Bar | GW3835G, 38 x 35mm Deep Profile |
| Material | Pine wood |
| Construction | Kiln-dried; finger-jointed where applicable |
| Surface | Smooth-sanded finish |
| Frame Position | Inside the GW3835G outer frame |
Supporting Bar Features
16 x 35mm Internal Profile
GWD1635-G has a 16mm thickness and 35mm width. It is positioned inside the GW3835G perimeter frame to provide internal reinforcement where the completed frame specification requires it.
Part of a Complete Frame System
The Supporting Bar should be confirmed together with the GW3835G outer bars, finished frame dimensions and planned support layout. Approving the full structure provides a more useful production reference than checking the Supporting Bar as an isolated wooden component.
The required Supporting Bar dimensions should be confirmed together with the finished frame size and internal support structure.
Designed for the GW3835G Deep Profile Frame System
GW3835G is a 38 x 35mm Deep Profile outer Stretcher Bar. GWD1635-G is one of the internal Supporting Bar profiles listed for this system. It supports the open area within the perimeter frame when the final structure requires reinforcement.
Using GW3835G does not automatically require a Supporting Bar. The need for internal support depends on the finished frame width and height, proportions, canvas specification, stretching tension, support layout and final application.
Supporting Bar Options for GW3835G
| Product | Profile | Application |
|---|---|---|
| GWD1635-G | 16 x 35mm | Supporting Bar option for GW3835G |
| GWD3828-G | 38 x 28mm | Supporting Bar option for GW3835G |
Both profiles are listed for the GW3835G frame system and have different cross-sectional dimensions. The appropriate Supporting Bar profile can be confirmed according to the complete frame dimensions, internal support layout and required frame structure.
Profile selection and Supporting Bar quantity are separate decisions. The existence of two profile options does not mean that a frame uses one of each.
Both profiles are listed for the GW3835G frame system and have different cross-sectional dimensions. The appropriate Supporting Bar profile can be confirmed according to the complete frame dimensions, internal support layout and required frame structure.
Profile selection and Supporting Bar quantity are separate decisions. The existence of two profile options does not mean that a frame uses one of each.
How Supporting Bars Work in a GW3835G Frame
A Supporting Bar is fitted inside the outer GW3835G frame to divide or reinforce the open internal span. Its position and direction should correspond to the dimensions and proportions of the finished frame. The connection and assembly method should be confirmed according to the complete frame structure.
The outer GW3835G bars form the perimeter over which the canvas is stretched. GWD1635-G remains an internal functional component and should not be used as a substitute for the outer profile.
Supporting Bar Quantity and Layout
A GW3835G frame may use no Supporting Bar, one Supporting Bar or multiple Supporting Bars. The correct quantity cannot be determined from the outer profile alone.
- No Supporting Bar: possible when the complete frame structure does not require internal reinforcement.
- One Supporting Bar: a single internal support across the required span.
- Parallel Supporting Bars: two or more supports running in the same direction.
- Three or more Supporting Bars: multiple supports positioned according to the complete frame structure.

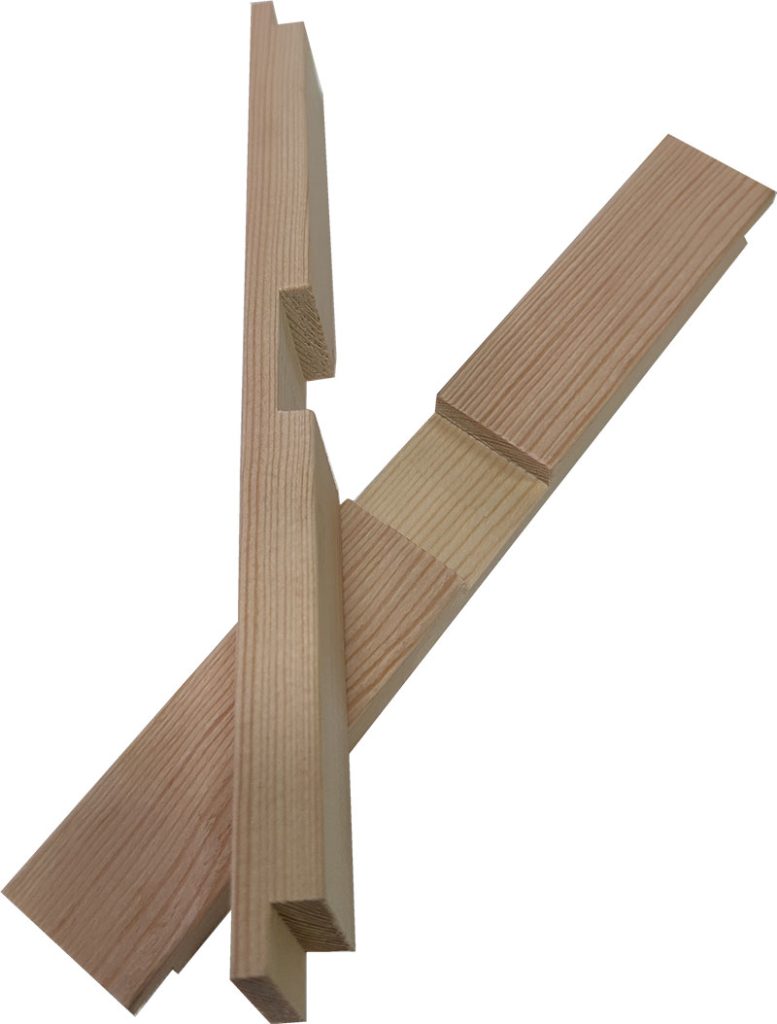

- Cross-brace arrangement: Supporting Bars arranged in crossing directions.
A Supporting Bar is the internal wooden component. A cross-brace arrangement is one possible layout made with Supporting Bars.
As a general starting point, internal support should normally be considered when the long side reaches approximately 60cm. This is not a fixed engineering rule and does not prescribe one Supporting Bar for every frame over 60cm. The final quantity and layout depend on the complete frame requirement.
How to Select the Supporting Bar Configuration
| Decision | What to Confirm |
|---|---|
| A. Supporting Bar profile | Confirm whether GWD1635-G 16 x 35mm or GWD3828-G 38 x 28mm matches the required GW3835G frame structure. |
| B. Quantity and layout | Confirm whether the frame needs no support, one support, parallel supports, three or more supports, or a cross-brace arrangement. |
For both decisions, provide the finished frame width and height, GW3835G outer profile, canvas specification, stretching tension, required internal support and final application. If you already have a frame drawing or established layout, include it with the inquiry.
Ordering and Frame Configuration
Please provide:
- Finished frame sizes
- Quantity of each frame size
- GW3835G outer Stretcher Bar requirement
- Preferred Supporting Bar profile, if already specified
- Supporting Bar quantity and layout, if already specified
- Canvas specification and stretching requirements
- Packing requirements and destination
If you do not have a fixed Supporting Bar configuration, it can be discussed according to the complete frame requirement. Supporting Bars are normally specified together with the Stretcher Bar or canvas-frame order, and the required quantity follows the frame sizes, frame quantities and selected support configuration.
Wood, Production and Quality
GWD1635-G uses the same general pine-wood and production basis as Gowin’s outer wooden Stretcher Bars. Pine supports stable material supply and practical length availability for repeat frame production. The wood is kiln-dried before machining, and finger-jointed construction is used where applicable.
During production, we check profile dimensions, straightness, surface sanding and the details confirmed for the order. Regular pine may show slight sound knots unless a different wood-grade requirement is agreed before production.
Packing and Export Supply
Export packing can be arranged according to the Supporting Bar lengths, complete frame order and transport method. OEM and private-label packing are available, with packing and labeling requirements confirmed according to the order.
EXW is available. FOB can be discussed according to the order and shipment arrangement, while DDP or door-to-door delivery can be discussed according to the destination and order conditions.
Sample and Frame Confirmation
Samples are available. Where practical, assemble GWD1635-G with the intended GW3835G outer bars and actual canvas. Check the 16 x 35mm profile, internal span, surface, connection and assembly, Supporting Bar position and complete frame structure before bulk production.
Frequently Asked Questions
Is GWD1635-G an outer Stretcher Bar?
No. GWD1635-G is an internal Supporting Bar for the GW3835G frame system. GW3835G is the 38 x 35mm Deep Profile outer Stretcher Bar.
What are the GWD1635-G profile dimensions?
GWD1635-G measures 16 x 35mm, equivalent to 1.6 x 3.5cm.
Is GWD1635-G the only Supporting Bar option for GW3835G?
No. GWD3828-G, with a 38 x 28mm profile, is also listed as a Supporting Bar option for GW3835G.
How should I choose between GWD1635-G and GWD3828-G?
The appropriate Supporting Bar profile can be confirmed according to the complete frame dimensions, internal support layout and required frame structure.
How many Supporting Bars does a GW3835G frame need?
The quantity depends on the complete frame. It may require no Supporting Bar, one support, two or more parallel supports, three or more supports, or a cross-brace arrangement. Approximately 60cm on the long side is a general starting point for evaluation rather than a fixed rule.
Can I test the Supporting Bar with the complete frame?
Yes. Samples are available, and confirming the Supporting Bar together with the intended GW3835G outer bars and actual canvas is recommended before bulk production.
Request a GWD1635-G Supporting Bar Sample or Quote
Send us your GW3835G frame sizes, frame quantities, canvas specification, preferred Supporting Bar profile, intended support layout, packing requirements and destination. We will help confirm the relevant frame configuration and provide sample and quotation details.
