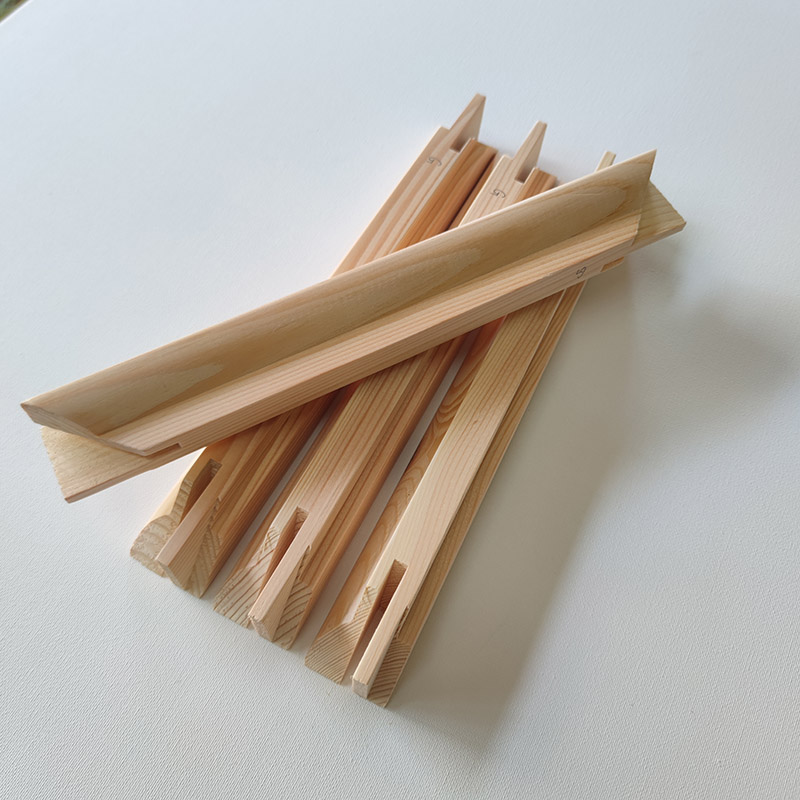

GW3835G – 38 x 35mm Deep Profile Stretcher Bars
GW3835G is a 38 x 35mm pine wooden stretcher bar in Gowin’s Deep Profile Stretcher Bars range. Its 38mm frame depth provides a substantially deeper profile than Gowin’s standard profiles while retaining a 35mm width. It is supplied for decorative canvas, wall decor, printed canvas frames and wholesale canvas-frame production where greater frame depth is required.
Compared with the standard GW2040 20 x 40mm profile, GW3835G is 18mm deeper and 5mm narrower. It is 20mm deeper and 5mm narrower than the GW1840S 18 x 40mm profile. Final selection should also consider the complete frame dimensions, canvas specification, stretching tension, internal support requirement and final application.
GW3835G is available in tenoned or non-tenoned structures, with listed lengths up to 300cm. When internal support is required, the frame system can be configured with GWD1635-G 16 x 35mm or GWD3828-G 38 x 28mm Supporting Bars.
Product Specifications
| Specification | GW3835G |
|---|---|
| Model | GW3835G |
| Product type | Wooden stretcher bar |
| Product family | Deep Profile Stretcher Bars |
| Wood species | Pine wood |
| Wood construction | Finger-jointed |
| Drying method | Kiln-dried |
| Profile thickness | 3.8cm / 38mm |
| Profile width | 3.5cm / 35mm |
| Overall profile dimensions | 38 x 35mm |
| Maximum listed length | Up to 300cm |
| Edge profile | Raised outer canvas-contact lip |
| Corner structure | Tenoned or non-tenoned options |
| Supporting Bar options | GWD1635-G, 16 x 35mm; GWD3828-G, 38 x 28mm |
| Surface | Smooth-sanded wood |
| Standard MOQ | 1,000 pcs per size; a lower quantity may be discussed depending on the whole order |
Product Features
38 x 35mm Deep Profile
GW3835G measures 38mm deep x 35mm wide. Its greater depth clearly separates it from Gowin’s 18 x 40mm and 20 x 40mm standard profiles. Greater frame depth does not automatically make a profile Heavy Duty; final selection should also consider the finished frame size, canvas weight, stretching tension and planned supporting structure.
Raised Canvas-Contact Lip
The profile includes a raised outer lip that provides clearance between the stretched canvas and the main face of the wooden bar.
Tenoned and Non-Tenoned Options
For the tenoned version, the four bars are normally assembled by fitting the machined corner joints together, so conventional frame nailing is generally not required for basic assembly. Additional reinforcement may still be used according to the frame size, profile design, assembly method and application.
Non-tenoned structures can be supplied when you have your own tenoning machinery or use direct-nailing assembly. Pre-assembled frames may also be secured with staples according to the assembly and packing method.
Corner Fit Confirmation
Corner fit can be discussed during sampling. Some production teams prefer a tighter joint for light hammer-assisted assembly, while programs requiring easier hand assembly may need a different fit.
Recommended Applications
- Decorative canvas frames
- Wall decor
- Printed canvas and photo canvas frames
- Deeper-profile stretched canvas
- Gallery-wrap canvas where a deeper profile is specified
- Wholesale and private-label canvas-frame production
Compare Relevant Gowin Stretcher Bar Profiles
| Model | Profile Dimensions | Product Family | Dimensional Difference from GW3835G | Key Difference |
|---|---|---|---|---|
| GW2040 | 20 x 40mm | Standard profile | 18mm shallower and 5mm wider | Standard 20mm-depth profile with a 40mm width |
| GW3835G | 38 x 35mm | Deep profile | Reference profile | Deep Profile outer bar with two listed Supporting Bar options |
| GW5535 | 55 x 35mm | Heavy duty profile | 17mm deeper with the same width | Deeper profile at the same listed 35mm width |
| GW3860 | 38 x 60mm | Heavy duty profile | Same depth and 25mm wider | Wider profile at the same listed 38mm depth |
The dimensional comparison shows how GW3835G provides greater frame depth than Gowin’s standard profiles, while GW5535 and GW3860 remain in the Heavy Duty range for more demanding structural requirements. It does not replace evaluation of the complete frame structure. The broader wooden stretcher bar range includes standard, deep profile, heavy duty and supporting profiles.
Supporting Bar Options for GW3835G
GW3835G can be configured with different internal Supporting Bar profiles when additional frame support is required. Gowin currently offers two Supporting Bar options for this frame system:
| Product | Profile | Application |
|---|---|---|
| GWD1635-G | 16 x 35mm | Supporting Bar option for GW3835G |
| GWD3828-G | 38 x 28mm | Supporting Bar option for GW3835G |
The appropriate Supporting Bar profile can be confirmed according to the complete frame dimensions, internal support layout and required frame structure.
Supporting Bar Quantity and Layout
Supporting Bar profile selection and Supporting Bar quantity or layout are separate decisions. Depending on the complete frame structure, a GW3835G frame may use:
- No Supporting Bar
- One Supporting Bar
- Two or more parallel Supporting Bars
- Three or more Supporting Bars
- Multiple Supporting Bars
- A cross-brace arrangement
GWD1635-G and GWD3828-G are profile options, not a fixed pair. The availability of two profiles does not mean that one frame automatically uses one of each.
How to Select the Supporting Bar Configuration
| Decision | What to Confirm |
|---|---|
| A. Supporting Bar profile | Confirm whether GWD1635-G 16 x 35mm or GWD3828-G 38 x 28mm matches the required frame structure. |
| B. Quantity and layout | Confirm how many Supporting Bars are needed and how they should be arranged within the complete frame. |
As a general starting point, internal support should normally be considered when the long side reaches approximately 60cm. This is general guidance rather than a fixed engineering rule. The actual Supporting Bar profile, quantity and layout depend on the complete frame dimensions and structure.
Ordering, Lengths and Customization
Lengths and Standard Supply
GW3835G can be supplied in cut lengths up to 300cm. Please provide the required length list and quantity for each size when requesting a quotation. The standard MOQ is 1,000 pcs per size, although a lower quantity may be discussed according to the composition and total quantity of the complete order.
Corner Structure and Assembly Requirements
Please confirm whether you require tenoned bars for fitted-corner assembly, non-tenoned lengths for your own machining or direct-nailing process, or pre-assembled frames. Assembly fit and the use of staples or other reinforcement can be reviewed during sampling.
Bespoke Profile Requirements
If your project requires a different thickness, width, edge profile, corner structure or assembly fit, provide a profile drawing or physical sample together with the required lengths and estimated quantities. Feasibility, sampling and MOQ can then be confirmed.
Wood, Production and Quality Information
GW3835G is made from pine wood. Gowin uses pine because its supply is stable and longer lengths are available for stretcher bar production. Finger-jointed construction allows selected pine sections to be joined for the production of longer bar lengths, while kiln drying helps control moisture before machining.
During production, we check profile dimensions, surface sanding, joint fit, moisture control and packing condition. Regular pine supply may include slight sound knots. If a cleaner appearance or stricter wood grade is required, please specify this before sampling and quotation, as it may affect material selection and pricing.
Packing and Export Supply
OEM and private-label packing are available. Packing and labeling requirements can be confirmed according to the bar lengths, profile dimensions, corner structure, quantities and shipping method.
FOB and EXW terms are available according to the order volume and shipment arrangement. For customers who prefer a more complete delivery solution, DDP or door-to-door delivery can also be discussed according to the destination and order requirements.
Sample and Profile Confirmation
Samples are available to confirm the 38 x 35mm profile, raised lip, surface, corner fit, assembly method and intended Supporting Bar configuration before bulk production. Please provide:
- Required frame sizes and bar lengths
- Canvas type and expected stretching method
- Tenoned, non-tenoned or pre-assembled structure
- Preferred corner fit and assembly method
- Proposed number and layout of supporting bars
- Estimated quantity, packing requirements and destination
Frequently Asked Questions
What are the GW3835G profile dimensions?
GW3835G measures 38mm deep x 35mm wide, equivalent to 3.8 x 3.5cm.
How does GW3835G differ from a standard stretcher bar?
GW3835G has a 38 x 35mm profile. It is 18mm deeper and 5mm narrower than the 20 x 40mm GW2040 standard profile, and 20mm deeper and 5mm narrower than the 18 x 40mm GW1840S profile.
What lengths can be supplied?
GW3835G can be supplied in lengths up to 300cm. Confirm the required cut-length list and quantity for each size before quotation.
Can GW3835G be assembled without nails?
The tenoned version is normally assembled by fitting the machined corner joints together, so conventional frame nailing is generally not required for basic assembly. Non-tenoned bars are also available for your own tenoning or direct-nailing process.
Which Supporting Bar can be used with GW3835G?
GW3835G can be configured with GWD1635-G 16 x 35mm or GWD3828-G 38 x 28mm Supporting Bars when internal support is required. The appropriate profile, quantity and layout should be confirmed according to the complete frame dimensions and structure.
What is the MOQ for GW3835G?
The standard MOQ is 1,000 pcs per size. A lower quantity may be discussed depending on the composition and total quantity of the complete order.
Request a GW3835G Sample or Quote
Send us your required frame sizes, bar lengths, corner structure, assembly preference, supporting-bar layout, order quantity, packing requirements and destination. We will help confirm whether GW3835G or another Gowin stretcher bar profile better matches your production requirements and provide the relevant sample and quotation details.
